Deploy an ECS cluster using Fargate

To illustrate automated scanning, we will now deploy a sample ECS cluster that scales using Fargate. For the purposes of the lab this will consist of this sample PHP application running in a Docker Compose environment - https://hub.docker.com/r/amazon/amazon-ecs-sample.

  1. Create a cluster configuration and create a cluster

    ecs-cli configure --cluster tutorial --default-launch-type FARGATE --config-name tutorial --region us-east-1

    ecs-cli up --cluster-config tutorial --ecs-profile tutorial-profile

    The output should show a VPC and two Subnets have been created:-

    INFO[0000] Created cluster                    cluster=tutorial region=us-east-1
    INFO[0000] Waiting for your cluster resources to be created...
    INFO[0000] Cloudformation stack status       stackStatus=CREATE_IN_PROGRESS
    INFO[0060] Cloudformation stack status       stackStatus=CREATE_IN_PROGRESS
    VPC created: vpc-046ed77edcd796e19
    Subnet created: subnet-045df8f58a51b2291
    Subnet created: subnet-0e4623283c4907ea7
    Cluster creation succeeded.
  2. We will use a bash script to create our ECS cluster. So first lets instantiate the script by copying and pasting the following commands

    cd /home/ec2-user/environment

    curl -s https://gist.githubusercontent.com/johnfitzpatrick/d55097212d9bb4e1442383a5e3339b01/raw/98953d9472edf4e023e00e28e28353687f9e726e/deploy-amazon-ecs-sample.sh > deploy-amazon-ecs-sample.sh

    chmod +x deploy-amazon-ecs-sample.sh
  3. Now run the script deploy-amazon-ecs-sample.sh, copying and pasting the VPC & Subnet values from the above out when prompted

    ./deploy-amazon-ecs-sample.sh

    Note You can subsequently get the VPC and Subnet details requested from the ‘Resources’ tab on CloudFormation UI

    ECS Cluster

    The deploy-amazon-ecs-sample.sh script will

    • Retrieve the id of the default security group for the VPC created, and allows inbound access on port 80

    • Create a ecs-params.yml file using the subnets and security group already retrieved. This file should look as follows

      version: 1
      task_definition:
          task_execution_role: ecsTaskExecutionRole
          ecs_network_mode: awsvpc
          task_size:
            mem_limit: 0.5GB
            cpu_limit: 256
      run_params:
          network_configuration:
            awsvpc_configuration:
              subnets:
                - "subnet-045df8f58a51b2291"
                - "subnet-0e4623283c4907ea7"
              security_groups:
                - "sg-3a1f94b6"
              assign_public_ip: ENABLED
    • Create a docker-compose.yaml to instantiate the image quay.io/awsdemosec/amazon-ecs-sample. This file looks as follows

      version: '3'
      services:
          web:
            image: quay.io/awsdemosec/amazon-ecs-sample
            ports:
              - "80:80"
            logging:
              driver: awslogs
              options:
                awslogs-group: tutorial
                awslogs-region: us-east-1
                awslogs-stream-prefix: web

      Optionally, for details of this script you can run the following command

      cat ./deploy-amazon-ecs-sample.sh
  4. Once the script has completed you can see details of of the ECS cluster on the Amazon ECS UI

Cluster Tutorial

Optional/Troubleshooting

  1. You can check of the ECS state by running ecs-cli ps

    Name                                           State    Ports                     TaskDefinition  Health
    tutorial/7c81f4d640b84a58a1b4ddf4dbaa0bb5/web  RUNNING  3.221.149.218:80->80/tcp  tutorial:1      UNKNOWN
  2. Check the deployed images with ecs-cli images

    REPOSITORY NAME     TAG                 IMAGE DIGEST                                                              PUSHED AT           SIZE
    aws-workshop        latest              sha256:b9901958776c9c9881c1f7ba0e4c57f9715909eb7d78387a9481a4300585aab3   12 minutes ago      239MB

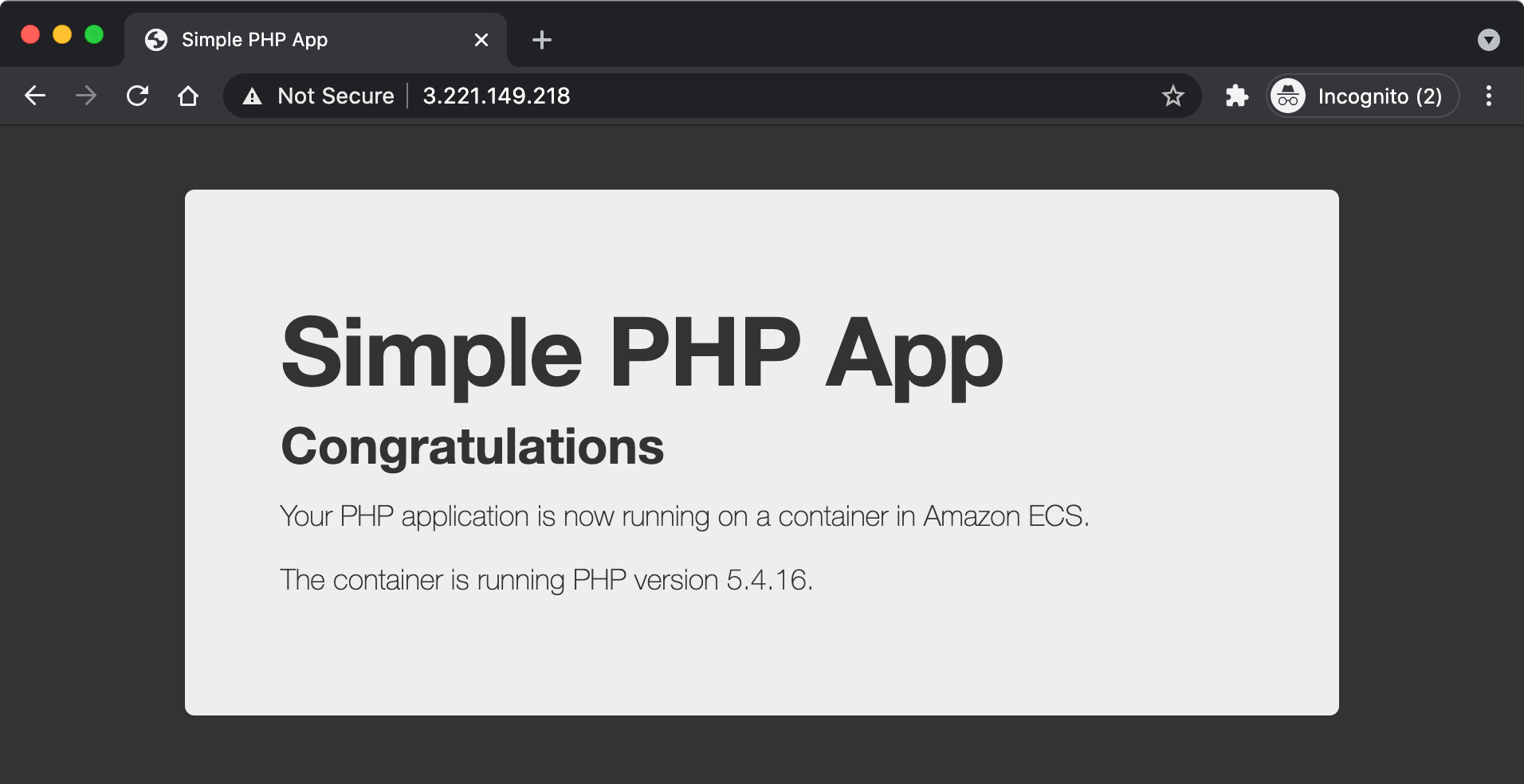

  3. Browse to the sample application using the details in ecs-cli ps output (e.g. 3.221.149.218:80)

    Sample PHP App

Obtain VPC & Subnet Info

You can execute the following to obtain the VPC & Subnet information

STACKNAME=amazon-ecs-cli-setup-tutorial
for resource in Vpc PubSubnetAz1 PubSubnetAz2
do
  aws cloudformation describe-stack-resources --stack-name $STACKNAME --query 'StackResources[?LogicalResourceId=='"'$resource'"'].PhysicalResourceId' --output text
done
